Galvanized Wire Mesh: Before vs. After Weld
If you have ever bought the same outdoor panel twice, the difference between galvanized before weld and galvanized after weld is usually why. Both start as steel and end up with zinc on the outside, but the order of operations decides what happens at the welds, and the welds tend to fail first.
What the zinc is actually doing
Zinc works two ways at once. Barrier protection comes first: the coating keeps moisture and oxygen off the steel underneath. Then there is galvanic, or sacrificial, protection. Zinc is anodic to steel, so where the coating gets scratched or nicked, the surrounding zinc corrodes preferentially and buys the exposed steel time.
That sacrificial effect is real but limited. It works across small gaps, a scratch or a pinhole, not a long bare edge or a whole uncoated joint. As a rule of thumb, more zinc means longer service in the same environment, which is why coating weight matters more than the word "galvanized" on a spec sheet.
Galvanized before weld (GBW)
With GBW, the wire is zinc coated first, then fed into the welder. The welding current melts the wire at each intersection and burns off or badly thins the zinc right there. You get a product well coated across the spans and vulnerable at every crossing, which is why GBW mesh often shows its first rust as brown dots in a grid pattern before the wires look bad.
The upside is appearance and handling. GBW is typically smoother, brighter, and more dimensionally consistent, because nothing was added after forming. That uniform surface is part of why it dominates lighter-duty welded wire mesh.
Galvanized after weld (GAW)
Here the mesh is welded from bare wire first, then galvanized as a unit, most often by hot dipping. Molten zinc flows over the wires, into the weld nodes, and around the edges cut before dipping, so the joints GBW leaves exposed are typically covered. Outdoors, that is the whole argument.
The trade-off shows up in looks and feel. Expect a heavier, duller coating with texture, zinc buildup at the intersections, and sometimes drips or small spikes. Those rough spots are normal, not a defect. Openings can run slightly tighter than nominal, since the coating adds thickness. Very fine meshes are not practical to galvanize after weld, because the zinc bridges the openings, so fine work stays GBW or goes stainless.
GBW vs. GAW at a glance
| Factor | Before weld (GBW) | After weld (GAW) |
|---|---|---|
| Coating at welds | Burned off or thinned at each intersection; bare or heat-affected steel at the joint | Zinc generally covers welds, crossings, and the edges cut before galvanizing |
| Corrosion resistance | Rust typically starts at the weld nodes; short outdoor life | Longer life in wet or exposed service because the nodes are covered; zinc still gets consumed |
| Typical use | Indoor, dry, covered, short-life, or budget-driven work | Outdoor exposure, soil contact, wash-down, most agricultural work |
Cost, and what you are paying for
GAW costs more per square foot than a comparable GBW product. You are paying for an extra process step and for more zinc by weight. What matters is cost over the life of the install: on a dry indoor guard the extra spend buys you nothing, but on anything sitting in dirt or rain, the replacement panel plus the labor to pull and rebuild around it costs more than the upgrade would have.
Where each one makes sense
GBW is a reasonable pick for dry indoor work: light machine guards, shelving and rack backing, interior partitions, and cages under a roof.

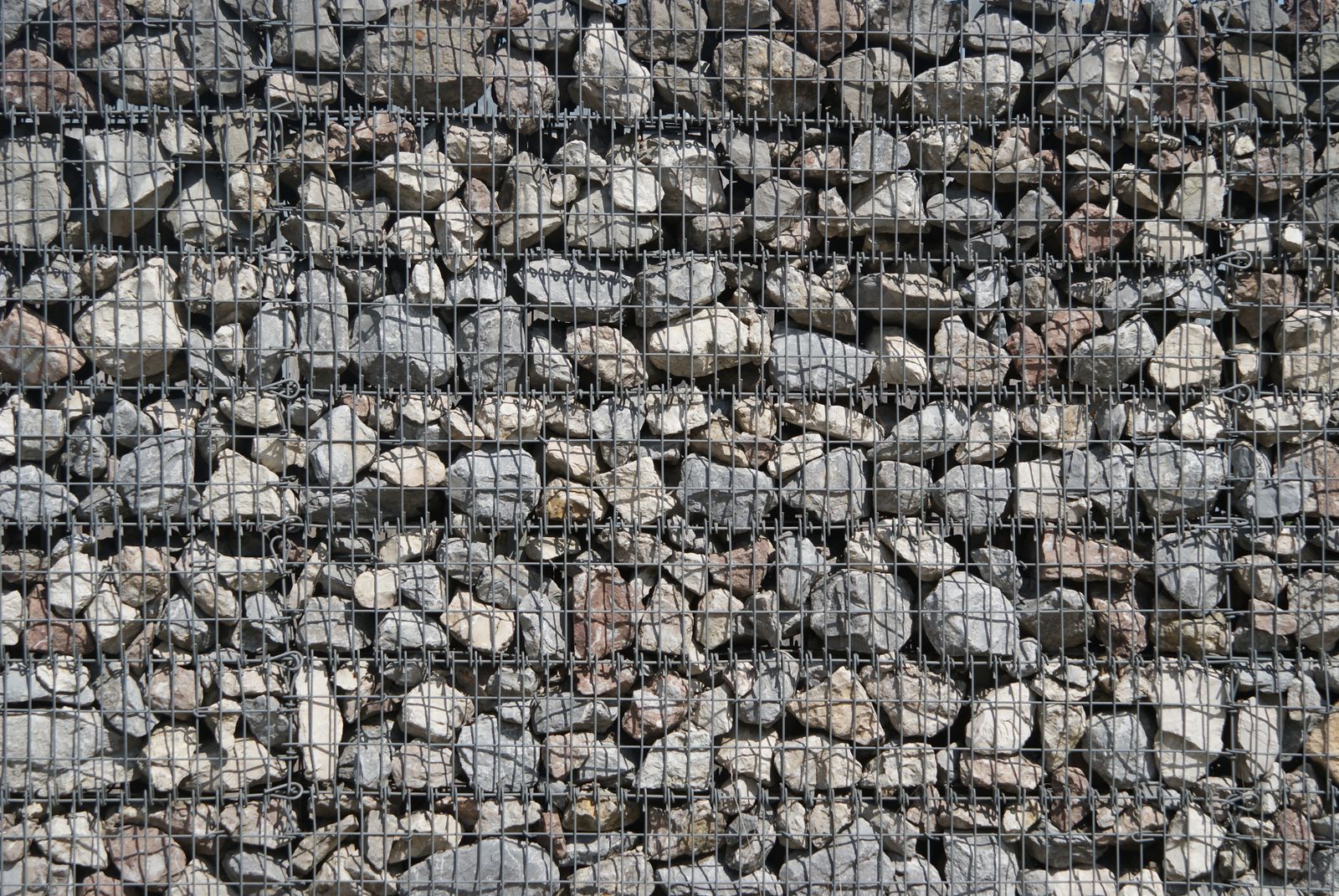

Outdoors and anywhere water lingers, GAW earns its keep: fencing, gabion baskets, debris screens, ag and equine work, and anything in soil contact or washed down regularly. Two cautions. Where animals chew, peck, or lick at the mesh, birds above all, galvanized coatings and the loose zinc GAW can leave at the nodes are a recognized ingestion hazard, so stainless is often specified instead. Near the coast, GAW will outlast GBW, but salt air eats zinc fast, and if the install has to last, price stainless before you commit.
Welded or woven, and what wire
Make sure a welded product is what you want. Welded mesh holds a fixed, uniform grid, while woven wire mesh comes in finer openings and drapes more readily; our welded versus woven comparison covers the trade-offs. Two panels with the same mesh count can be built from very different wire, so check a wire gauge conversion chart before you compare bids.
Every cut exposes bare steel
Zinc is a surface coating, not a corrosion-resistant base metal like stainless, so the moment you shear, snip, or drill galvanized mesh you expose bare steel at that edge. That is true of GBW and GAW alike: a panel that arrives fully coated still has raw steel wherever you cut it.
Sacrificial protection covers small nicks reasonably well, but a long cut edge sitting in standing water is a different story. Common practice is to touch up cut edges with a zinc-rich cold galvanizing compound, orient them so they shed water, and frame or hem where you can.
When galvanized is not enough: stainless and PVC-coated
Stainless resists corrosion throughout its thickness rather than relying on a surface layer: a passive chromium oxide film re-forms when the surface is scratched, as long as oxygen reaches it, so a cut edge usually behaves like the rest of the sheet. It is not corrosion-proof, though. Crevices, standing water, and chlorides can still cause pitting.
Type 304 is generally suitable for a lot of outdoor and wash-down work, though it can pit where chlorides are present, chlorinated cleaners and salt air included. Type 316 adds molybdenum that improves chloride resistance, which is why people reach for it near salt water. Our write-up on 304 versus 316 stainless covers where that upgrade pays; the material guide covers other alloys.
Most PVC-coated mesh is a galvanized core with a polymer jacket. The jacket adds abrasion resistance and color and helps in wet environments, but a puncture lets moisture sit against the steel unseen. In genuinely corrosive service, stainless costs more up front and saves the second install.
Frequently Asked Questions
How can I tell GBW from GAW just by looking?
Check the intersections. On GAW you usually see a duller, rougher surface with zinc built up at the nodes, sometimes drips or spikes, and the panel feels heavier in the same wire size and mesh. GBW looks smoother and more uniform. If it matters, ask for the coating weight rather than trusting appearance.
Does galvanized after weld mesh ever rust?
Yes. Zinc is consumed over time, and how fast depends on the environment: humidity, salt, soil chemistry, and whether the mesh stays wet. Covered weld nodes are why GAW outlasts GBW in the same exposure, but no galvanized product is permanent, and nobody can quote a year figure sight unseen.
What does coating weight mean, and should I specify it?
Coating weight describes how much zinc is on the surface, commonly given in ounces per square foot. More zinc means longer service in the same conditions. If corrosion is your main concern, put a coating weight on the drawing rather than just asking for "galvanized."
Can I paint galvanized wire mesh?
Yes, but zinc is a difficult surface for ordinary paint to grip. It takes proper cleaning and a primer made for galvanized substrates, and you should follow the coating manufacturer's instructions.
