Brass Wire Mesh
Brass mesh is chosen for looks as often as for chemistry — grilles, cabinet inserts, restoration work and architectural panels — and for being non-sparking where a flammable atmosphere rules out steel.
Brass contains zinc, which can leach out in aggressive or moving water. For marine and wet service, bronze is the better choice.
New to this? When stainless is the wrong alloy compares brass, bronze and copper. Also see copper wire mesh.
// 0180 x 70 Mesh
80 x 70 Mesh – .0055" Wire Diameter – Brass Woven Wire
// 02100 Mesh
100 Mesh – .0045" Wire Diameter – Brass Woven Wire – 36" Wide
// 0380 Mesh
80 Mesh – .0055" Wire Diameter – Brass Woven Wire – 36" Wide
// 0460 Mesh
60 Mesh – .0075" Wire Diameter – Brass Woven Wire – 36" Wide
// 0550 Mesh
50 Mesh – .009" Wire Diameter – Brass Woven Wire – 36" Wide
// 0640 Mesh
40 Mesh – .010" Wire Diameter – Brass Woven Wire – 36" Wide
// 0724 Mesh
24 Mesh – .014" Wire Diameter – Brass Woven Wire – 36" Wide
// 0820 Mesh
20 Mesh – .016" Wire Diameter – Brass Woven Wire – 36" Wide
// 0916 Mesh
16 Mesh – .018" Wire Diameter – Brass Woven Wire – 36" Wide
// 1014 Mesh
14 Mesh – .020" Wire Diameter – Brass Woven Wire – 36" Wide
// 118 Mesh
8 Mesh – .032" Wire Diameter – Brass Woven Wire
// 128 Mesh
8 Mesh – .028" Wire Diameter – Brass Woven Wire – 36" Wide
// 138 Mesh
8 Mesh – .025" Wire Diameter – Brass Woven Wire – 36" Wide
// 146 Mesh
6 Mesh – .035" Wire Diameter – Brass Woven Wire – 36" Wide
// 155 Mesh
5 Mesh – .041" Wire Diameter – Brass Woven Wire
// 164 Mesh
4 Mesh – .047" Wire Diameter – Brass Woven Wire – 36" Wide
// 172 Mesh
2 Mesh – .080" Wire Diameter – Brass Woven Wire – 48" Wide
// 182 Mesh
2 Mesh – .063" Wire Diameter – Brass Woven Wire – 36" Wide
// 191" Mesh

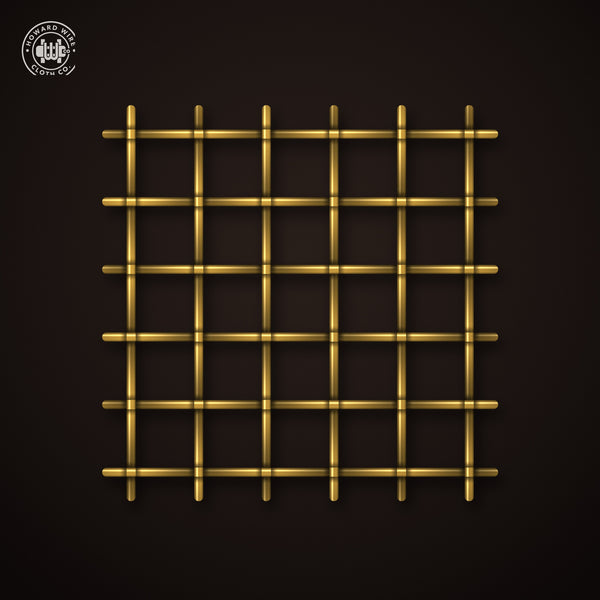

1" Mesh – .135" Wire Diameter – Brass Woven Wire – 48" Wide
// Ask Meshy
Need A Spec
We Don’t List?
We weave to order — any mesh count, alloy, or width. Send the spec and we’ll quote it.
