Woven · 30 mesh

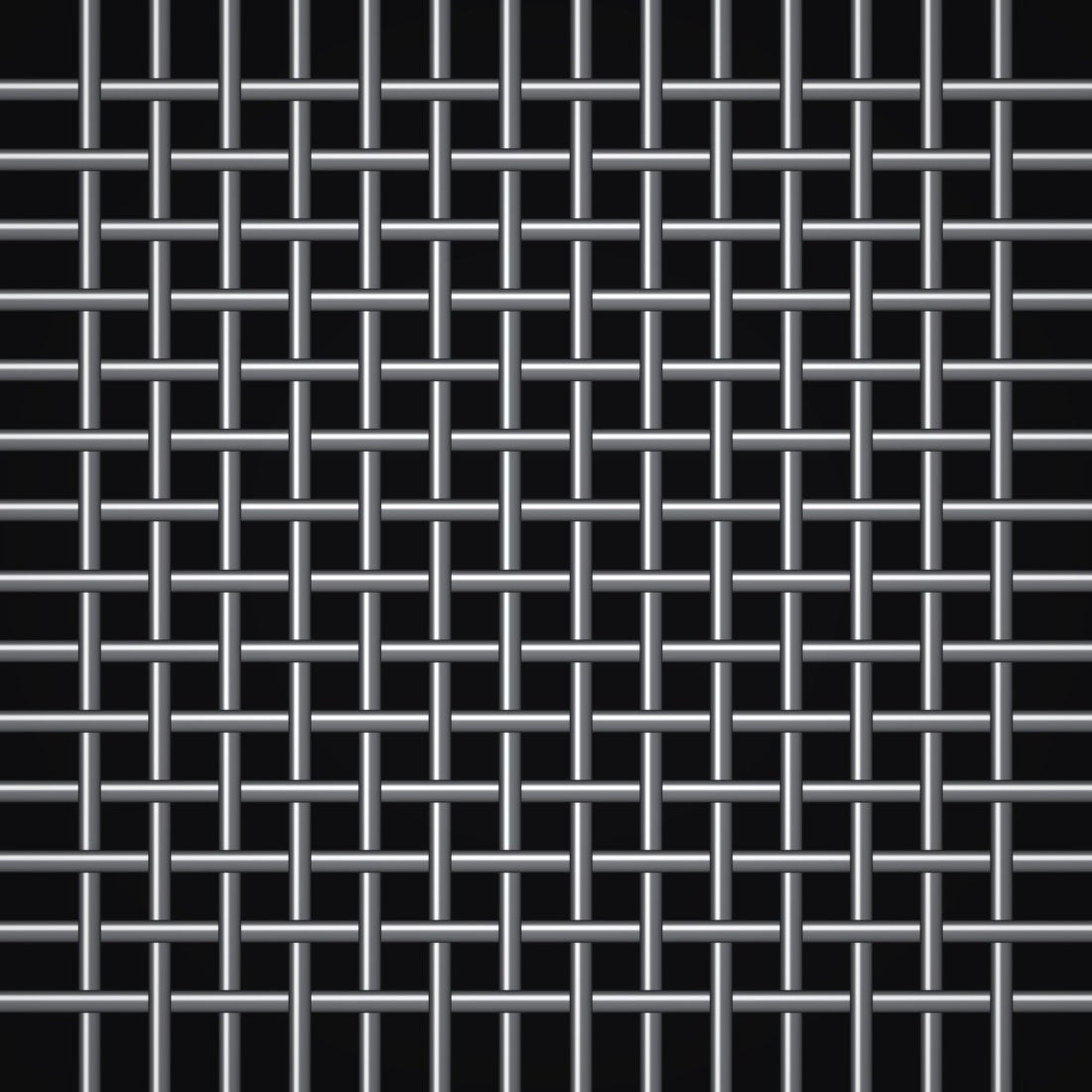

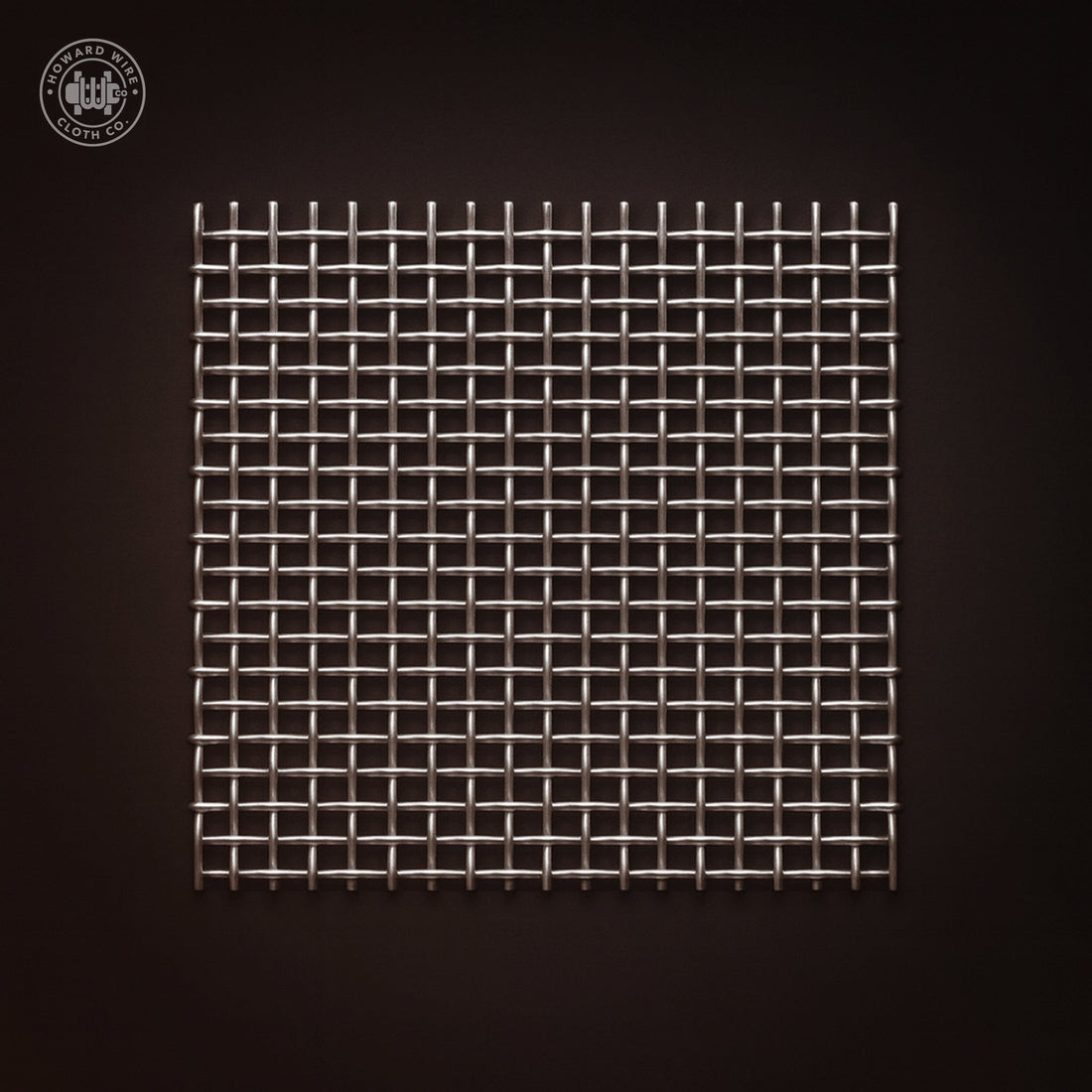

30 Mesh – .011" Wire Diameter – Monel Woven Wire
SKU · MU30-011D-PCS30 mesh.011" Wire
Monel (nickel-copper) woven wire mesh — 30 mesh with a .011" wire diameter, giving a 0.022" (0.57 mm) square opening and roughly 45% open area.
Monel is a nickel-copper alloy with outstanding resistance to seawater and acids. A dependable choice for fine filtration, laboratory sieving, and micron-level particle control.
Cut to your dimensions. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications30 mesh · Monel
- Construction
- Woven
- Material / Alloy
- Monel
- Mesh Count
- 30 mesh
- Wire Diameter
- .011"
- Opening Size
- 0.0223" · 567 µm
- Open Area
- 45%
- Finish
- Pieces
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Sifting & Screening
Sand, soil, grain and compost screens.
Vent & Pest Screens
Vents, soffits and openings that keep bugs and debris out.
Strainers & Baskets
Parts-washing baskets, strainers and drain screens.
Spark Arrestors
Exhaust and chimney spark screens.
