Woven · 20 mesh
20 Mesh – .016" Wire Diameter – Copper Woven Wire
SKU · CU20-016J20 mesh.016" Wire

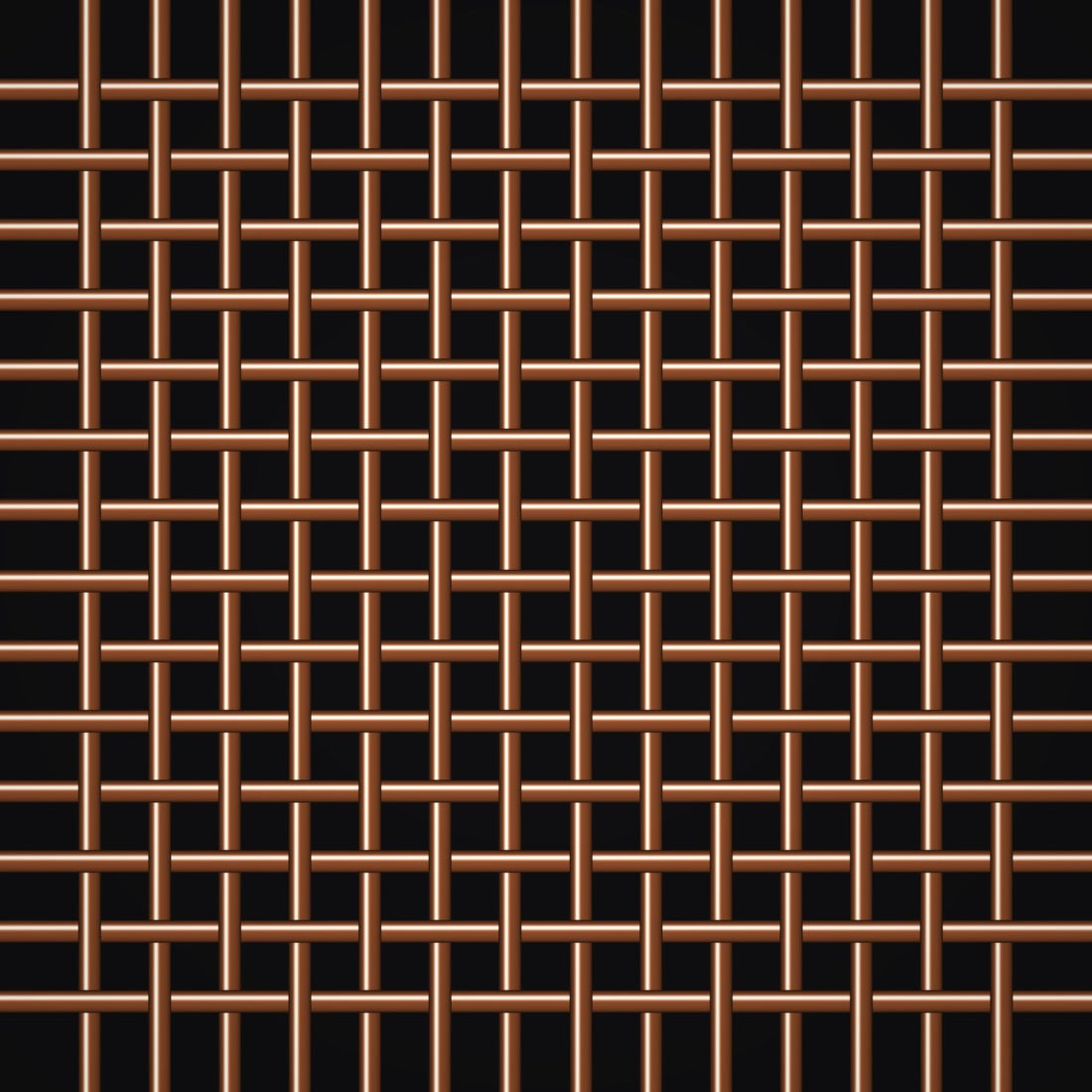

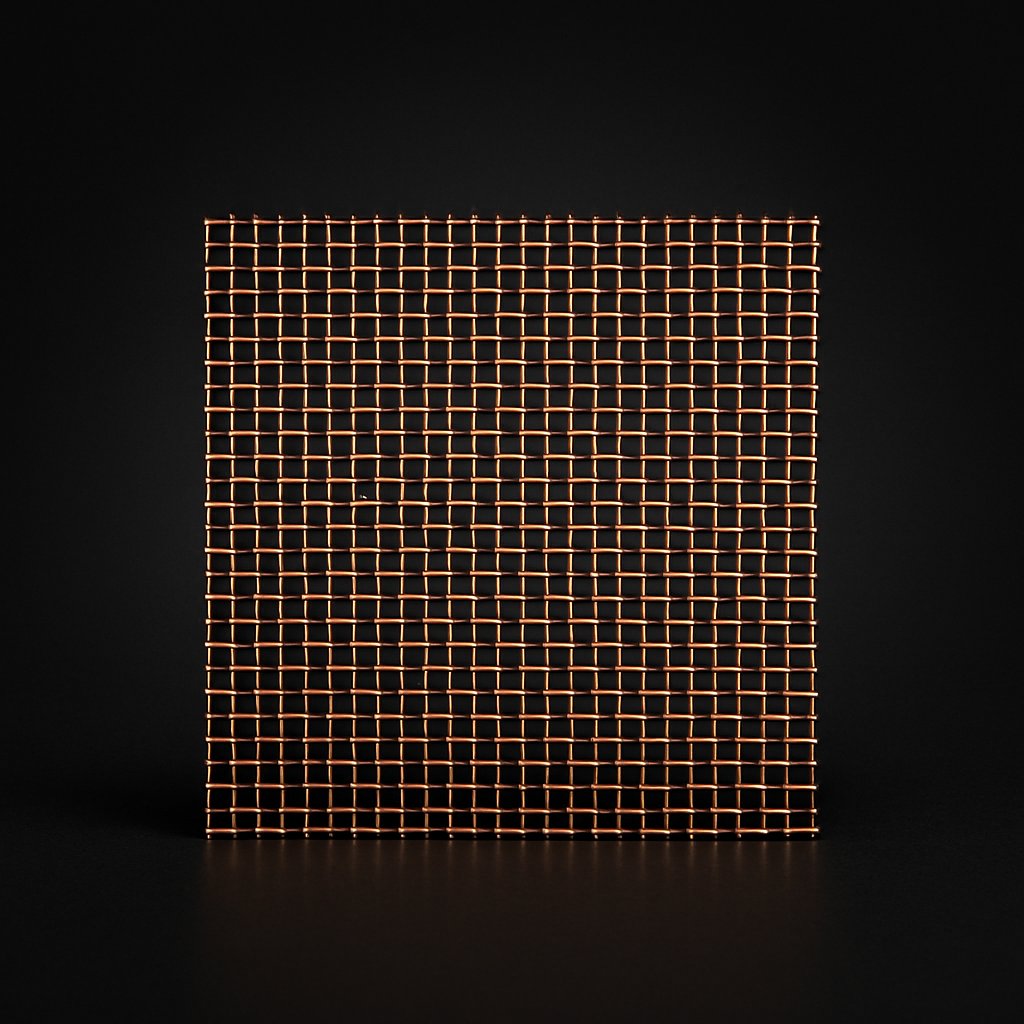

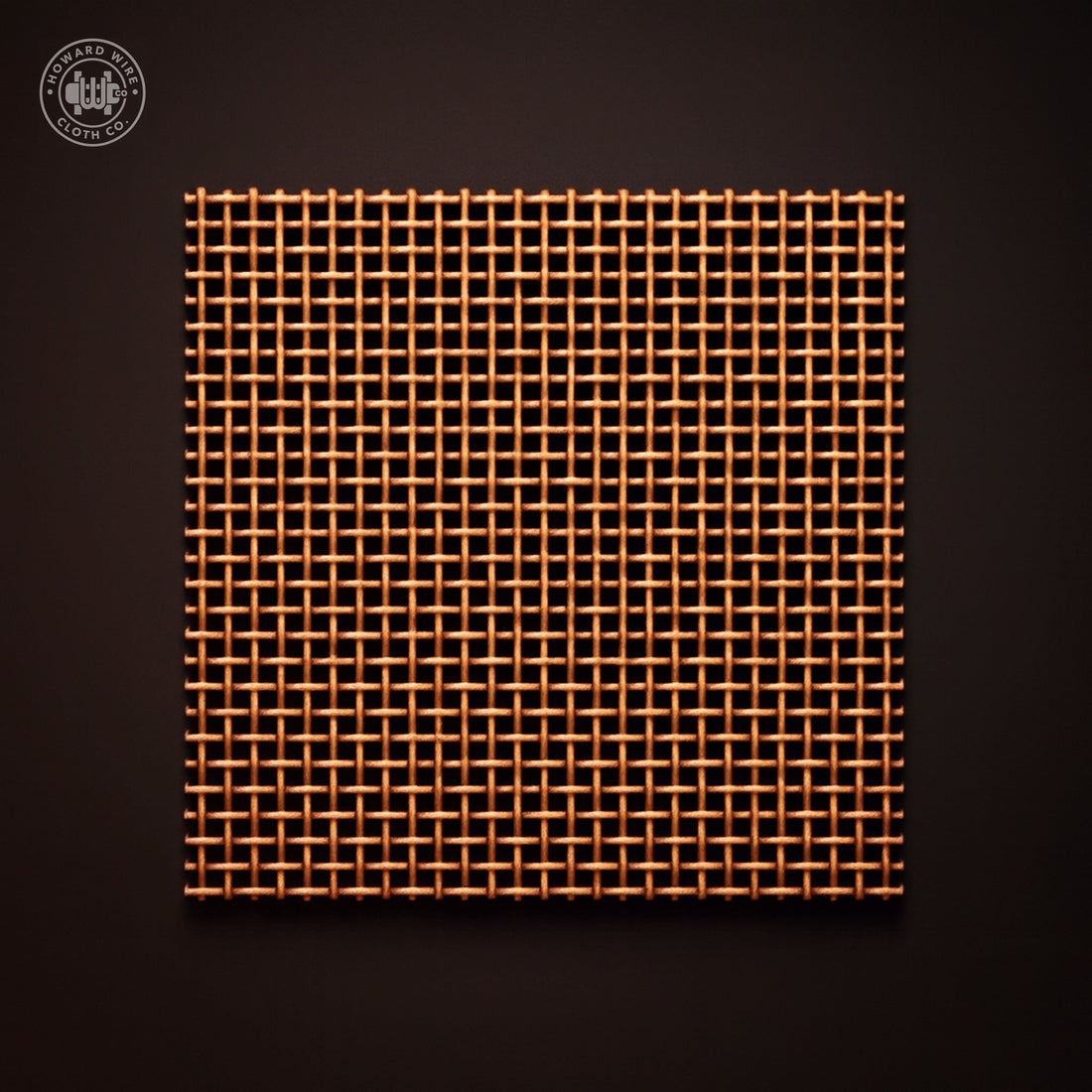

Copper woven wire mesh — 20 mesh with a .016" wire diameter, giving a 0.034" (0.86 mm) square opening and roughly 46% open area.
Copper is highly conductive and naturally antimicrobial, aging to a distinctive patina — also used for RFI shielding. A dependable choice for sifting, particle separation, filtration, screening, and guards.
Available in 36" and 48" widths, cut to size. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications20 mesh · Copper
- Construction
- Woven
- Material / Alloy
- Copper
- Mesh Count
- 20 mesh
- Wire Diameter
- .016"
- Opening Size
- 0.034" · 864 µm
- Open Area
- 46%
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Sifting & Screening
Sand, soil, grain and compost screens.
Vent & Pest Screens
Vents, soffits and openings that keep bugs and debris out.
Strainers & Baskets
Parts-washing baskets, strainers and drain screens.
Spark Arrestors
Exhaust and chimney spark screens.
