Woven · 100 mesh
100 Mesh – .0022" Wire Diameter – Copper Woven Wire – 48" Wide
SKU · CU100-0022N100 mesh.0022" Wire

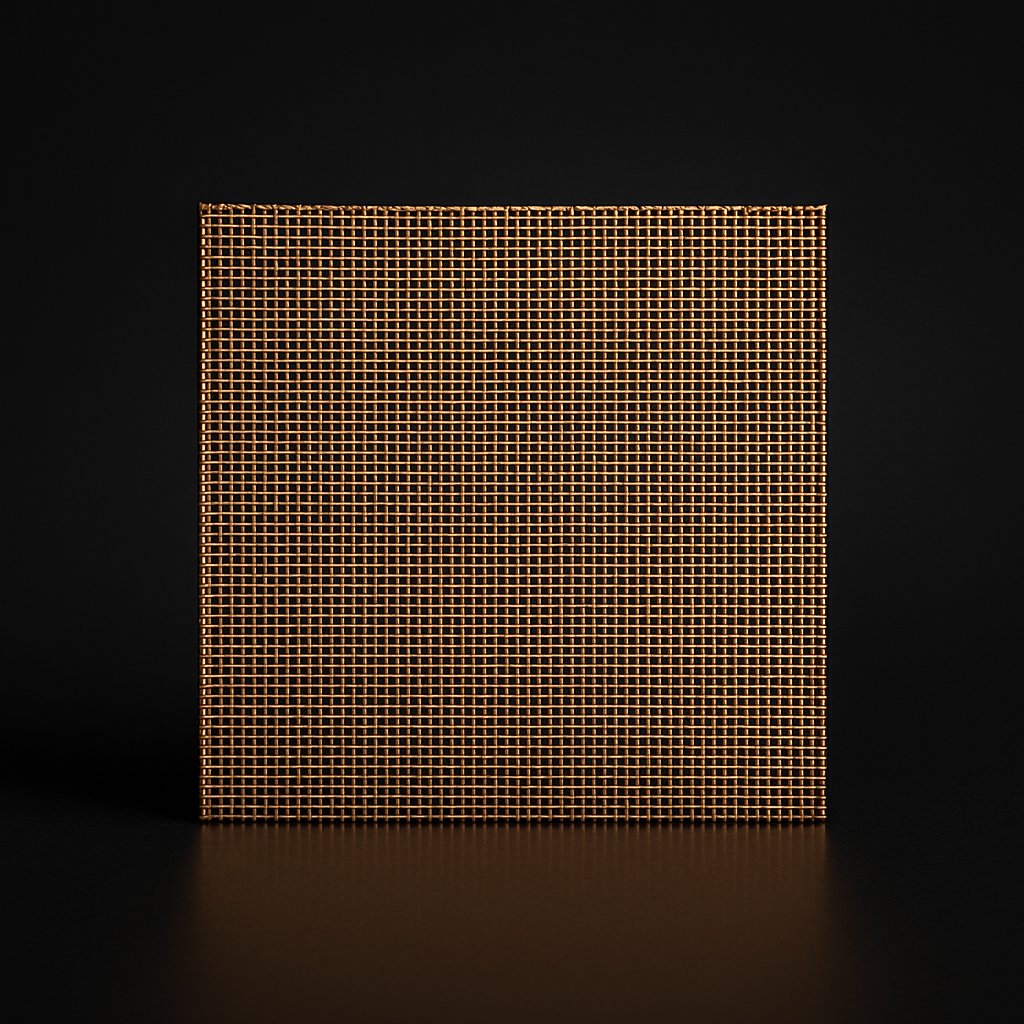

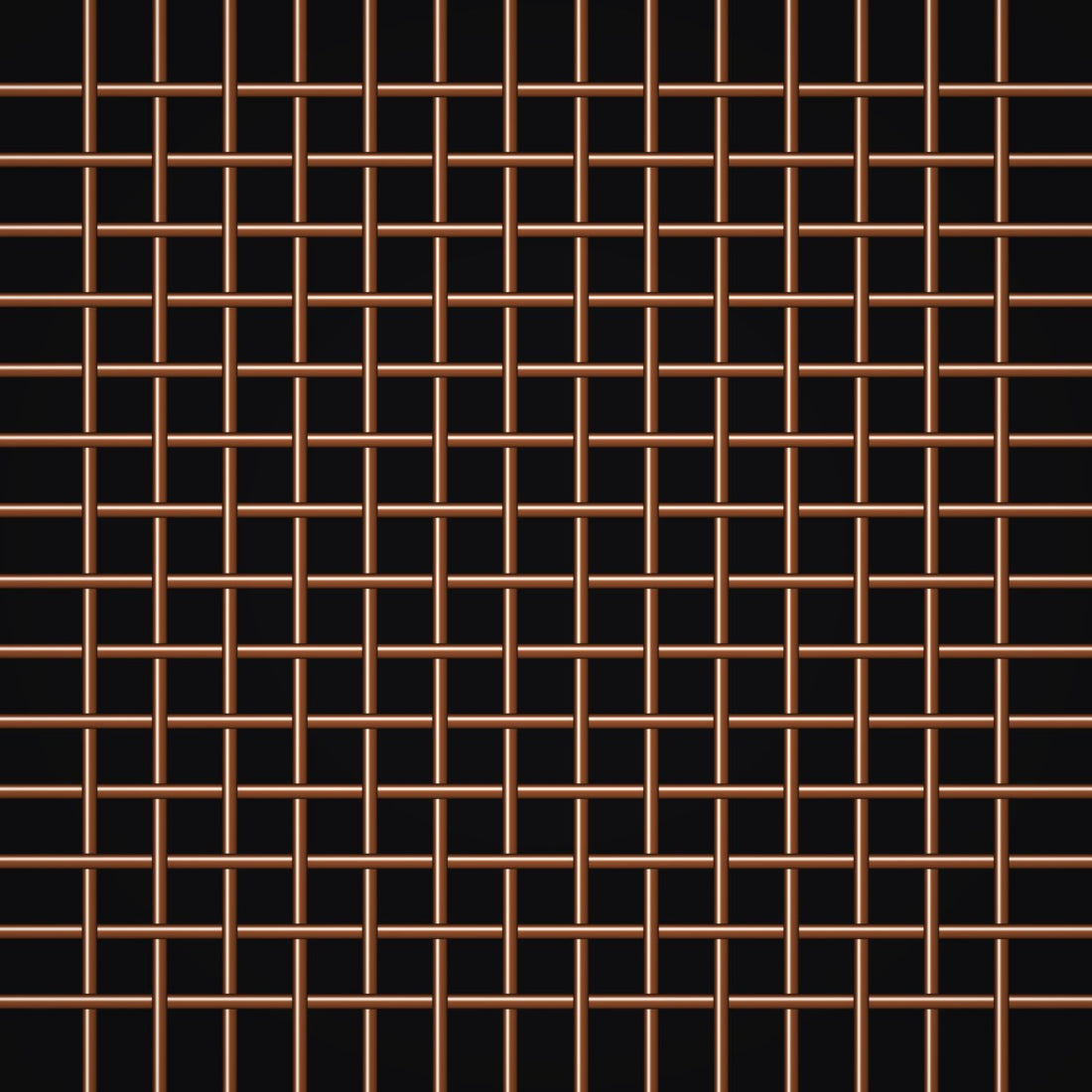

Copper woven wire mesh — 100 mesh with a .0022" wire diameter, giving a 0.008" (0.20 mm) square opening and roughly 61% open area.
Copper is highly conductive and naturally antimicrobial, aging to a distinctive patina — also used for RFI shielding. A dependable choice for fine filtration, laboratory sieving, and micron-level particle control.
Supplied as 48" wide material, cut to your dimensions. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications100 mesh · Copper
- Construction
- Woven
- Material / Alloy
- Copper
- Mesh Count
- 100 mesh
- Wire Diameter
- .0022"
- Opening Size
- 0.0078" · 198 µm
- Open Area
- 61%
- Stock Size
- 48" Wide
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Filtration
Liquid, fuel and hydraulic filters, strainer elements and filter discs.
Sieving & Lab
Test sieves, particle sizing and sample separation.
Food & Beverage
Sifters, strainers and brewing screens in food-safe stainless.
Shielding & Venting
EMI/RFI shielding, battery and sensor vents, acoustic screens.
