Woven · 3 mesh

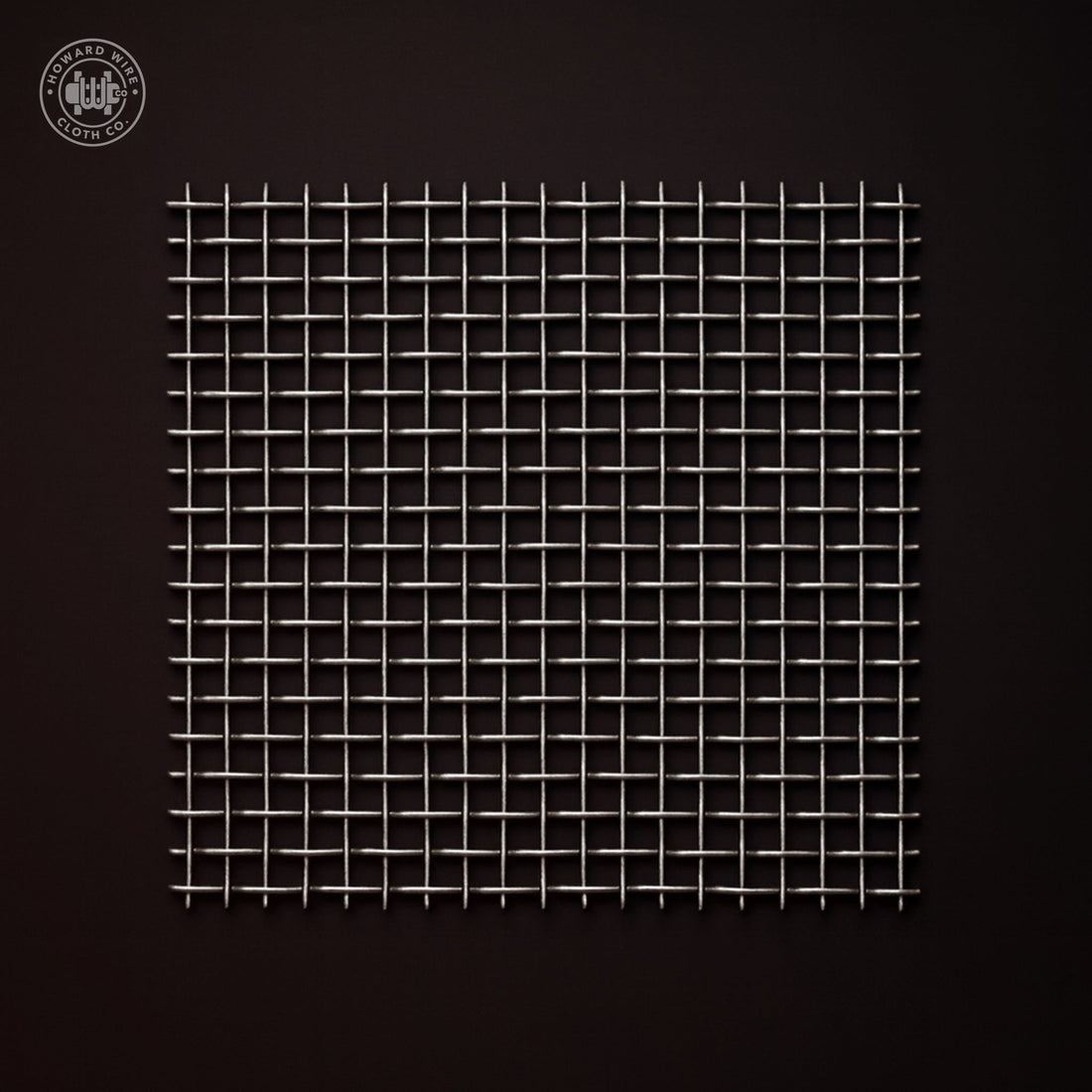

3 Mesh – .047" Wire Diameter – 316L SS Woven Wire – 48" Wide
SKU · SU3047N3 mesh.047" Wire

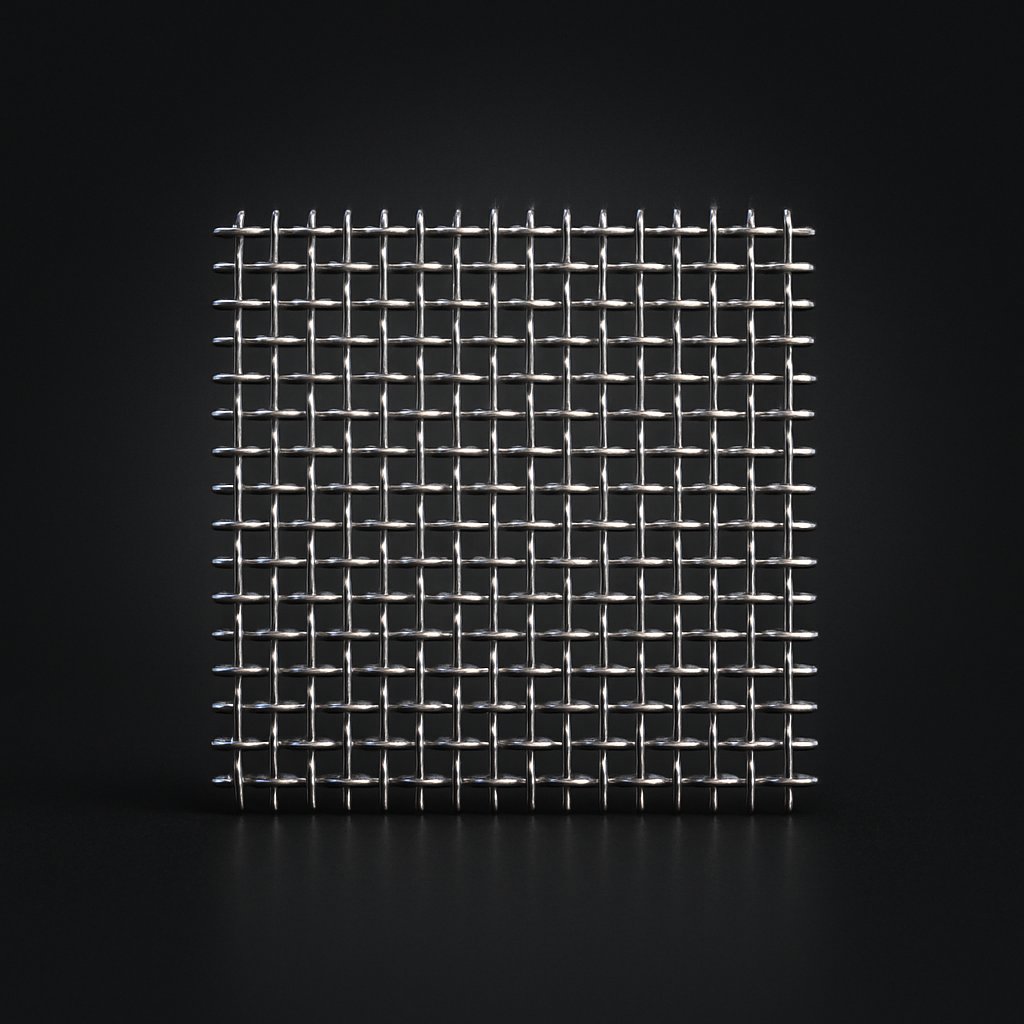

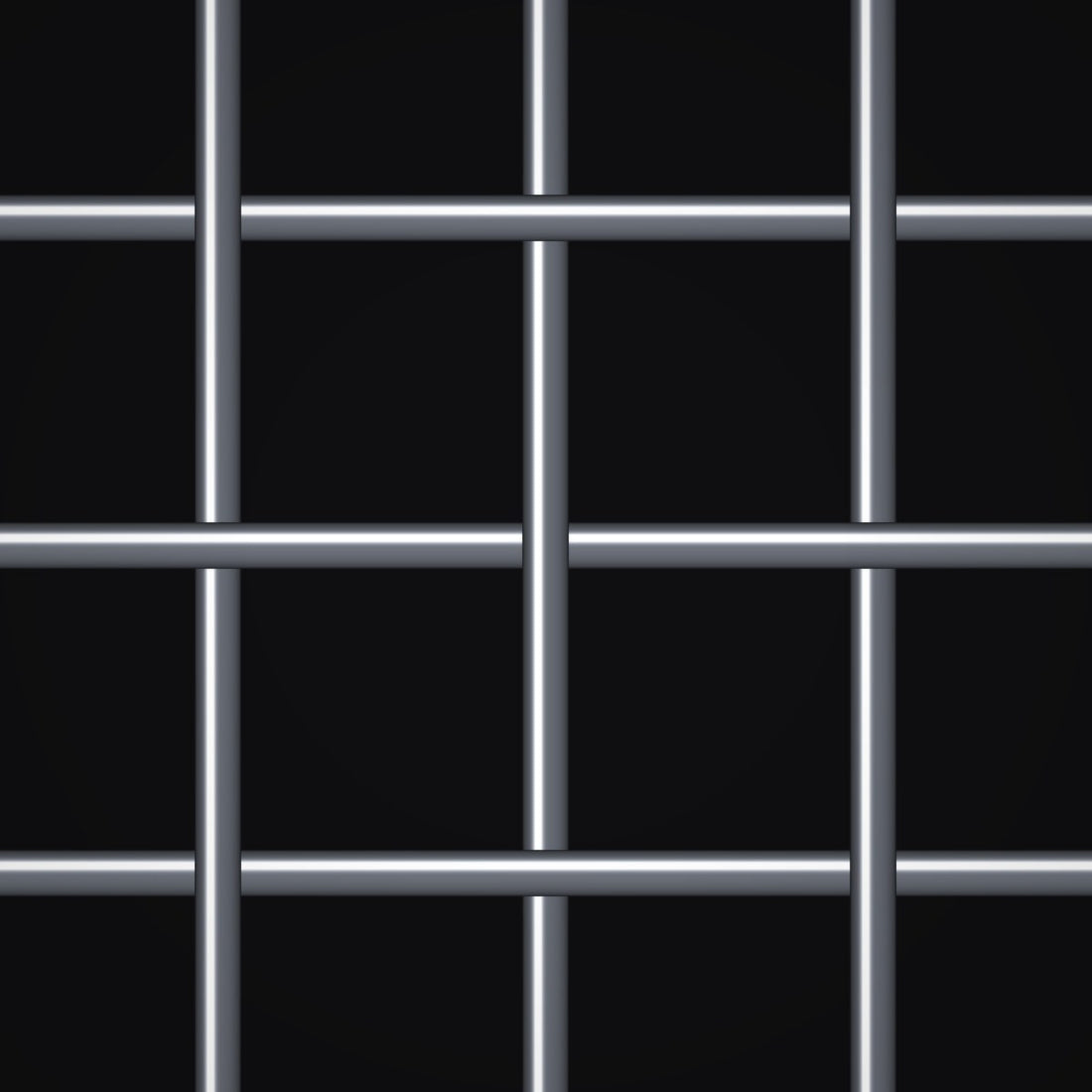

316L stainless steel woven wire mesh — 3 mesh with a .047" wire diameter, giving a 0.286" (7.27 mm) square opening and roughly 74% open area.
316L stainless steel is a low-carbon 316 variant that keeps its corrosion resistance after welding — the pick for welded assemblies in marine and chemical service. A dependable choice for machine guards, security and vent screens, infill panels, and architectural work.
Supplied as 48" wide material, cut to your dimensions. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications3 mesh · 316L SS
- Construction
- Woven
- Material / Alloy
- 316L SS
- Mesh Count
- 3 mesh
- Wire Diameter
- .047"
- Opening Size
- 0.286" · 7.3 mm
- Open Area
- 74%
- Stock Size
- 48" Wide
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Rock & Aggregate
Vibrating screen decks and grizzlies that grade rock and gravel.
Machine Guarding
Guards and enclosures around moving equipment.
Infill Panels
Railings, partitions and architectural infill.
Trays & Racks
Drying racks, parts trays and process equipment.
