Woven · 40 mesh

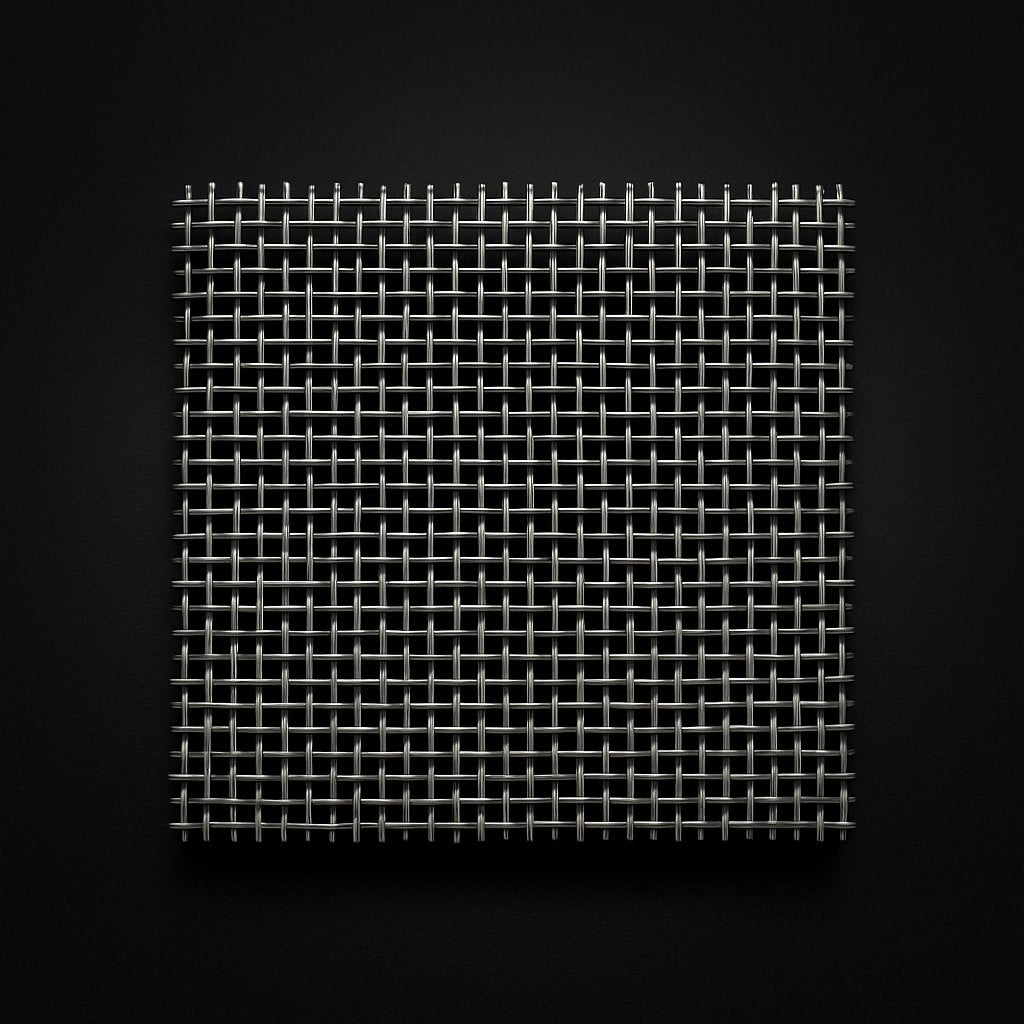

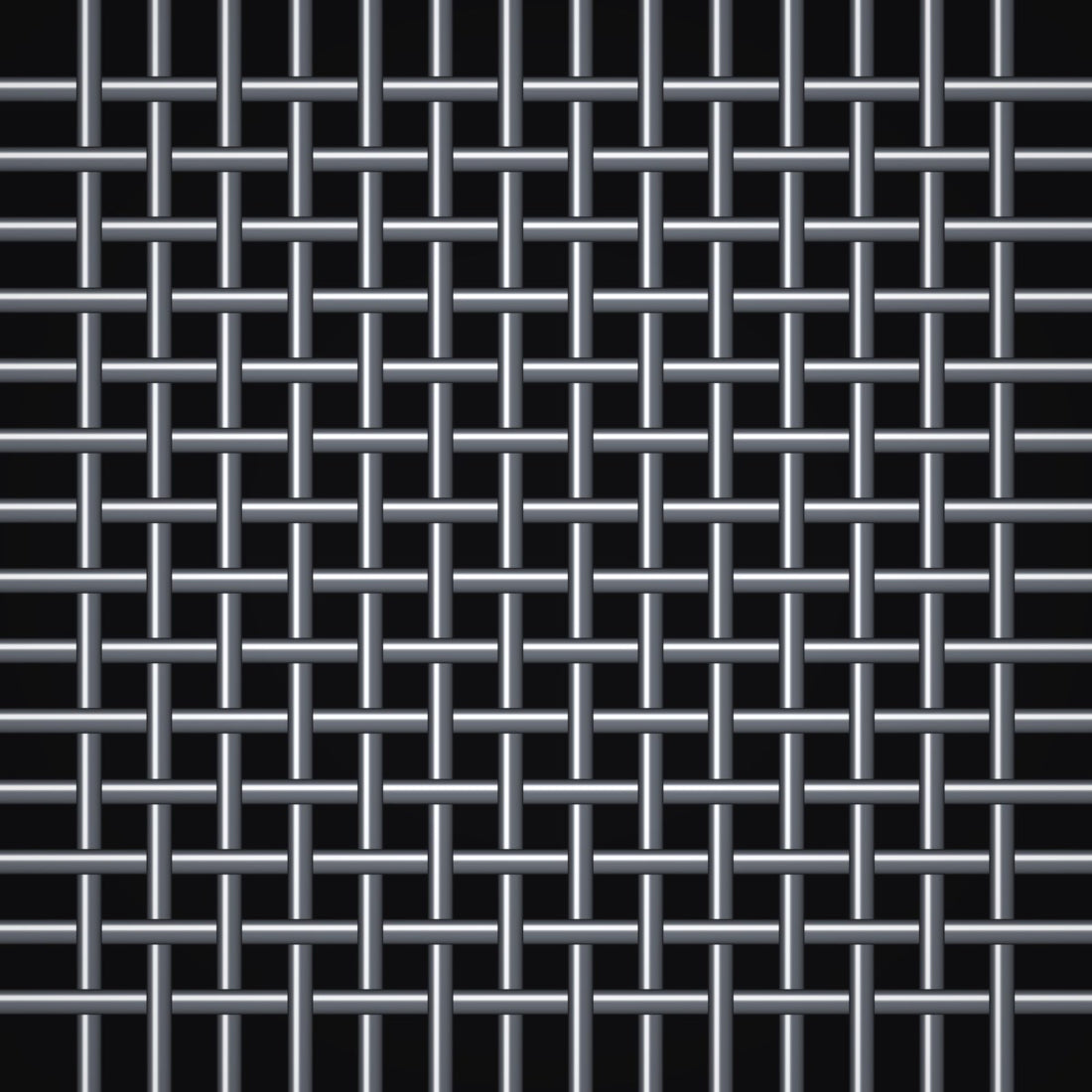

40 Mesh – .009" Wire Diameter – 316L Stainless Steel Woven Wire
SKU · RU40-009N"L"40 mesh.009" Wire
316L stainless steel woven wire mesh — 40 mesh with a .009" wire diameter, giving a 0.016" (0.41 mm) square opening and roughly 41% open area.
316L is the low-carbon version of 316 — molybdenum-bearing for superior resistance to salt, chlorides, and chemicals, with improved weldability. The marine and process-industry grade.
Supplied as 48" wide material, cut to your dimensions. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications40 mesh · 316L SS
- Construction
- Woven
- Material / Alloy
- 316L SS
- Mesh Count
- 40 mesh
- Wire Diameter
- .009"
- Opening Size
- 0.016" · 406 µm
- Open Area
- 41%
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Filtration
Liquid, fuel and hydraulic filters, strainer elements and filter discs.
Sieving & Lab
Test sieves, particle sizing and sample separation.
Food & Beverage
Sifters, strainers and brewing screens in food-safe stainless.
Shielding & Venting
EMI/RFI shielding, battery and sensor vents, acoustic screens.
