Woven · 30 mesh

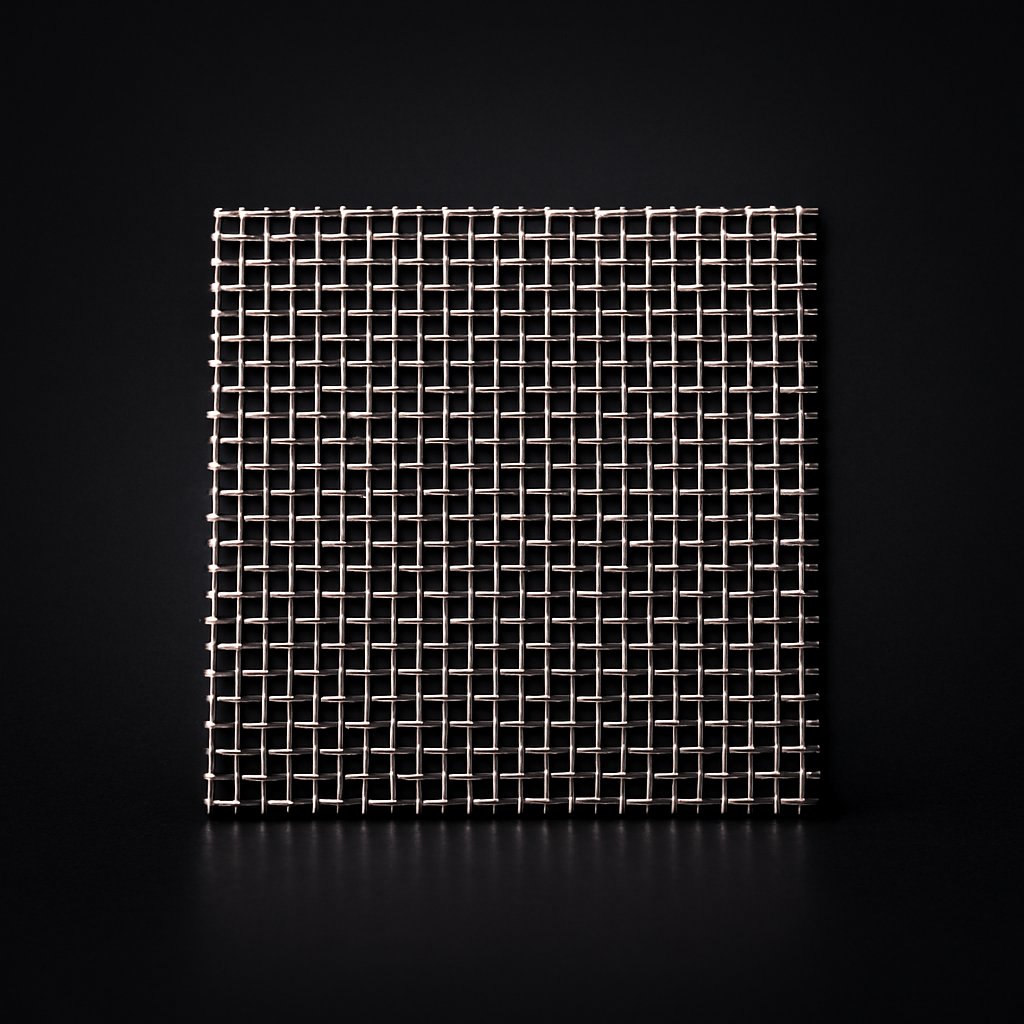

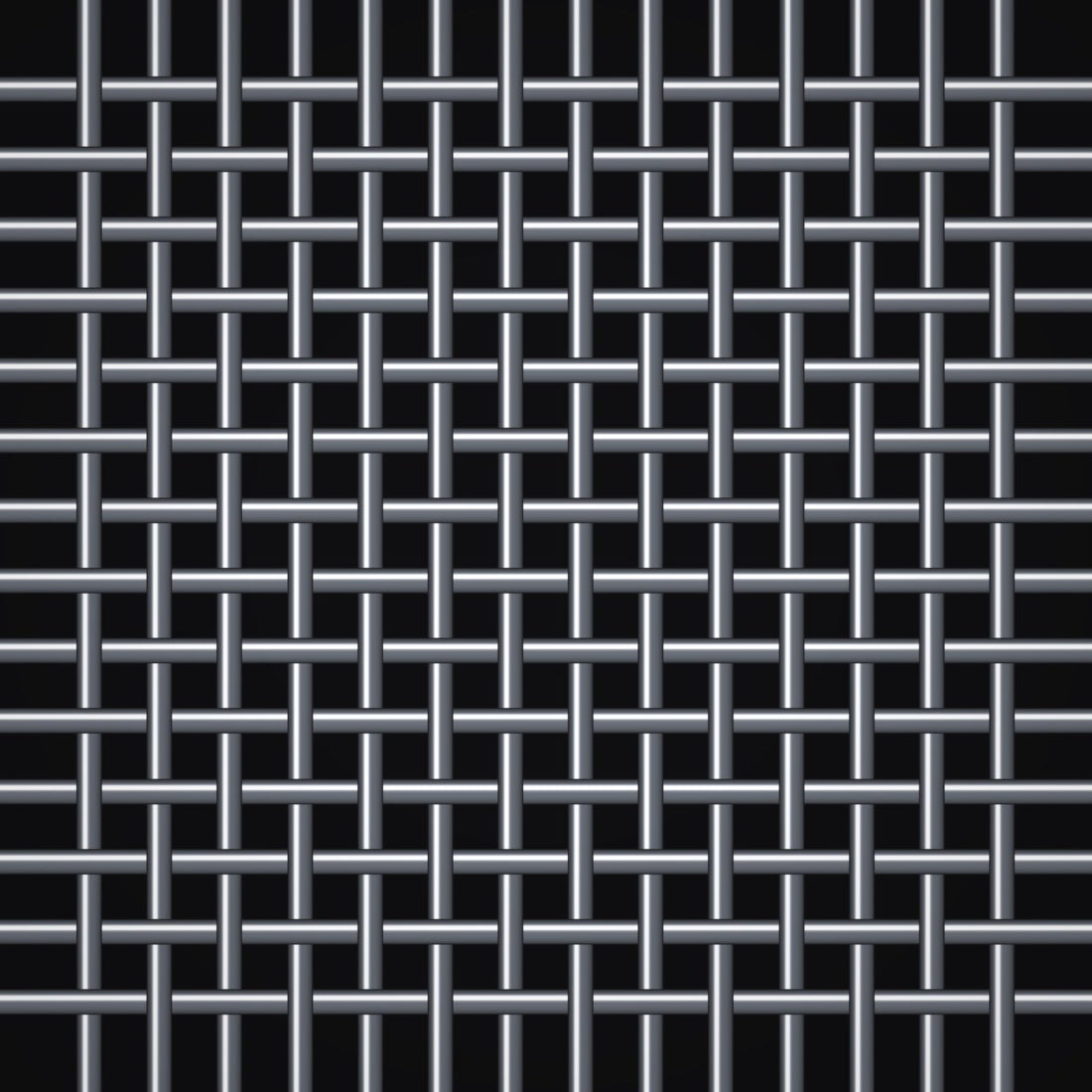

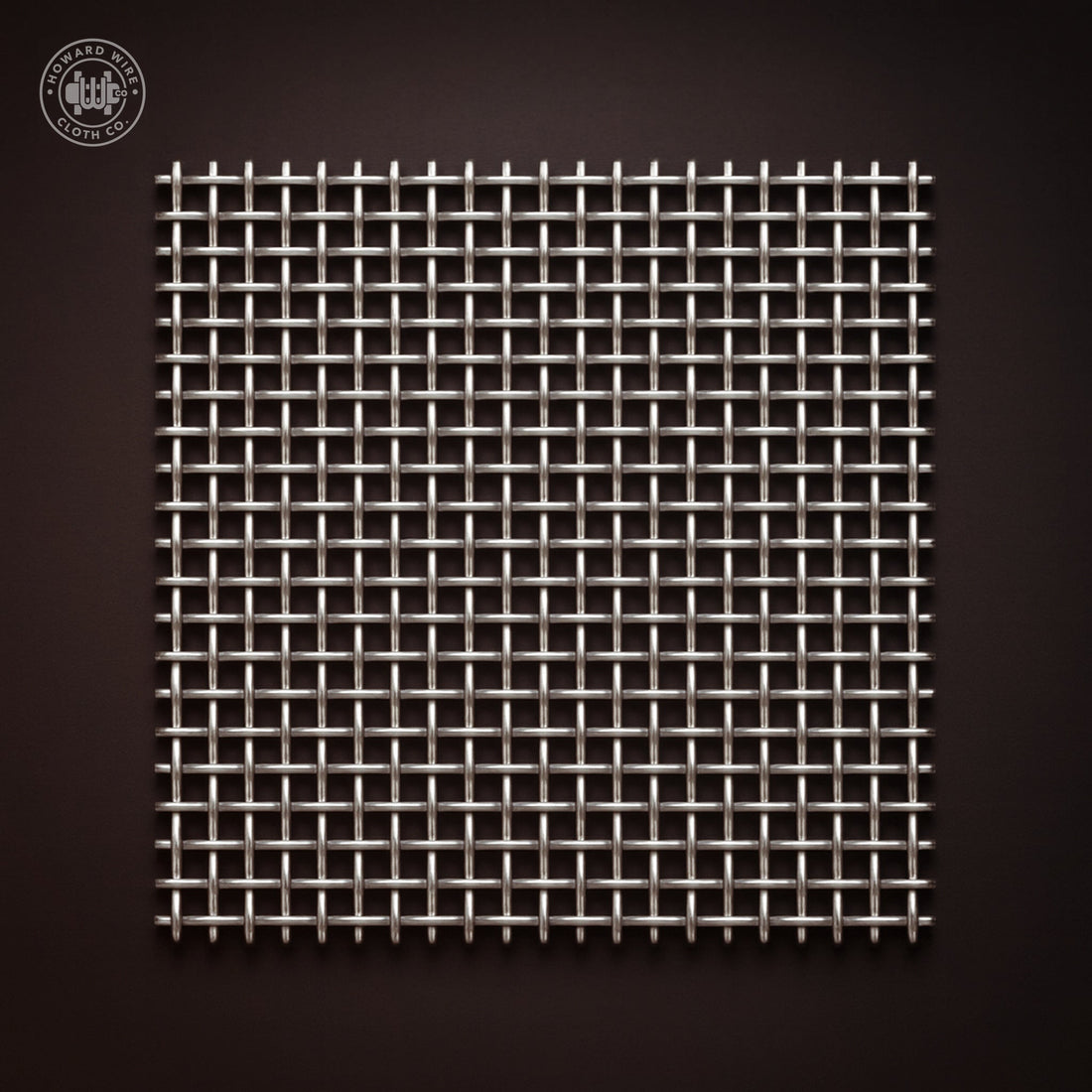

30 Mesh – .012" Wire Diameter – 316 Stainless Steel Woven Wire
SKU · RU30-012J30 mesh.012" Wire
316 stainless steel woven wire mesh — 30 mesh with a .012" wire diameter, giving a 0.021" (0.54 mm) square opening and roughly 41% open area.
316 stainless steel is molybdenum-bearing for superior resistance to salt, chlorides, and chemicals — the marine and process-industry grade. A dependable choice for fine filtration, laboratory sieving, and micron-level particle control.
Available in 36" and 48" widths, cut to size. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications30 mesh · 316 SS
- Construction
- Woven
- Material / Alloy
- 316 SS
- Mesh Count
- 30 mesh
- Wire Diameter
- .012"
- Opening Size
- 0.0213" · 542 µm
- Open Area
- 41%
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Sifting & Screening
Sand, soil, grain and compost screens.
Vent & Pest Screens
Vents, soffits and openings that keep bugs and debris out.
Strainers & Baskets
Parts-washing baskets, strainers and drain screens.
Spark Arrestors
Exhaust and chimney spark screens.
