Woven · 16 mesh

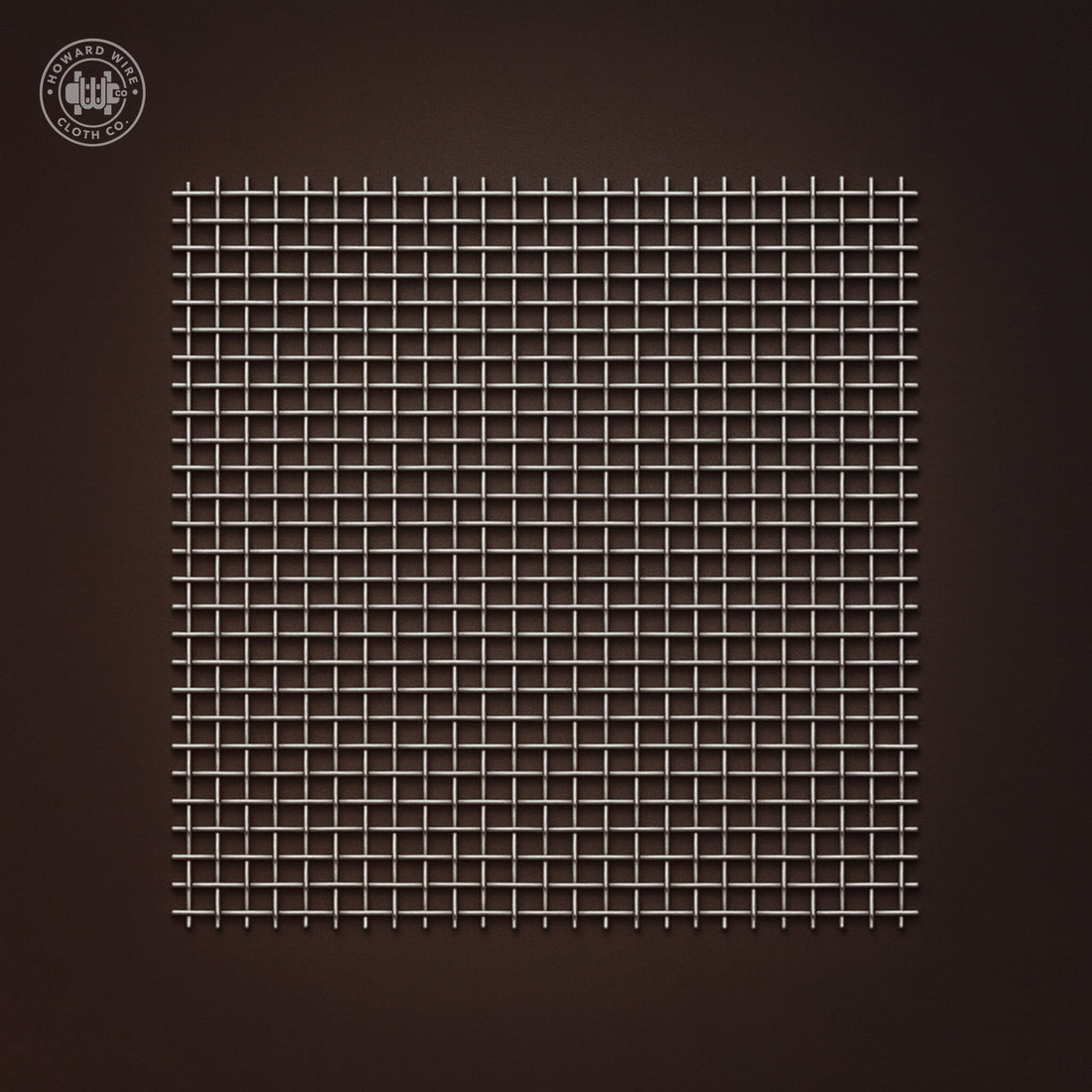

16 Mesh – .041" Wire Diameter – 304 Stainless Steel Woven Wire
SKU · KU16041N-ZZZ16 mesh.041" Wire
304 stainless steel woven wire mesh — 16 mesh with a heavy .041" wire diameter.
304 stainless steel is corrosion- and heat-resistant — the general-purpose stainless used across food, industrial, and architectural work. The heavy wire gauge makes this a rugged choice for screening, guards, and abrasive-duty separation.
Supplied as 48" wide material, cut to your dimensions. Stocked in Hayward, California — request a quote for pricing, custom sizes, and fabrication.
// Specifications16 mesh · 304 SS
- Construction
- Woven
- Material / Alloy
- 304 SS
- Mesh Count
- 16 mesh
- Wire Diameter
- .041"
- Opening Size
- 0.0215" · 546 µm
- Open Area
- 12%
Need a hand?
Custom widths, finishes or quantities — our team can quote anything we sell.
Talk to a real person →
Quick question? Ask Meshy (AI) →
From Hayward, CA → Your Door
/ 01
Logistics & Lead Time
How It Ships
Cut, Rolled, Shipped.
Cut & Rolled
Pulled from stock or cut-to-size at our Hayward warehouse. Wrapped in a protective sleeve for transit.
Out The Door
Standard rolls ship in 1–3 business days via freight or LTL. Tracking + MTR docs sent on dispatch.
/ 02
Where It Goes To Work
Typical Applications
Cut-to-spec mesh, screen and cloth — engineered for the jobs our customers run every day.
Sifting & Screening
Sand, soil, grain and compost screens.
Vent & Pest Screens
Vents, soffits and openings that keep bugs and debris out.
Strainers & Baskets
Parts-washing baskets, strainers and drain screens.
Spark Arrestors
Exhaust and chimney spark screens.
